Atlas structure charts give you a visual overview of your organization's entity relationships. This article explains how to access and customize a structure chart, including chart style, layout, and data visibility preferences.
Table of Contents
Access chart features and preferences
- In the left-side navigation, under Atlas, open the Entities page
- Use search and filters to locate the applicable entity and click its name to open it
- On the entity, click View Structure Chart
- Click Chart Preferences in the top-right corner
Chart Key
Reveal or hide the Key. Structure charts symbols represent the Tax Treatment selected during the entity's creation. If no Tax Treatment was selected, you will see an unknown symbol (leaf).
Chart Preferences

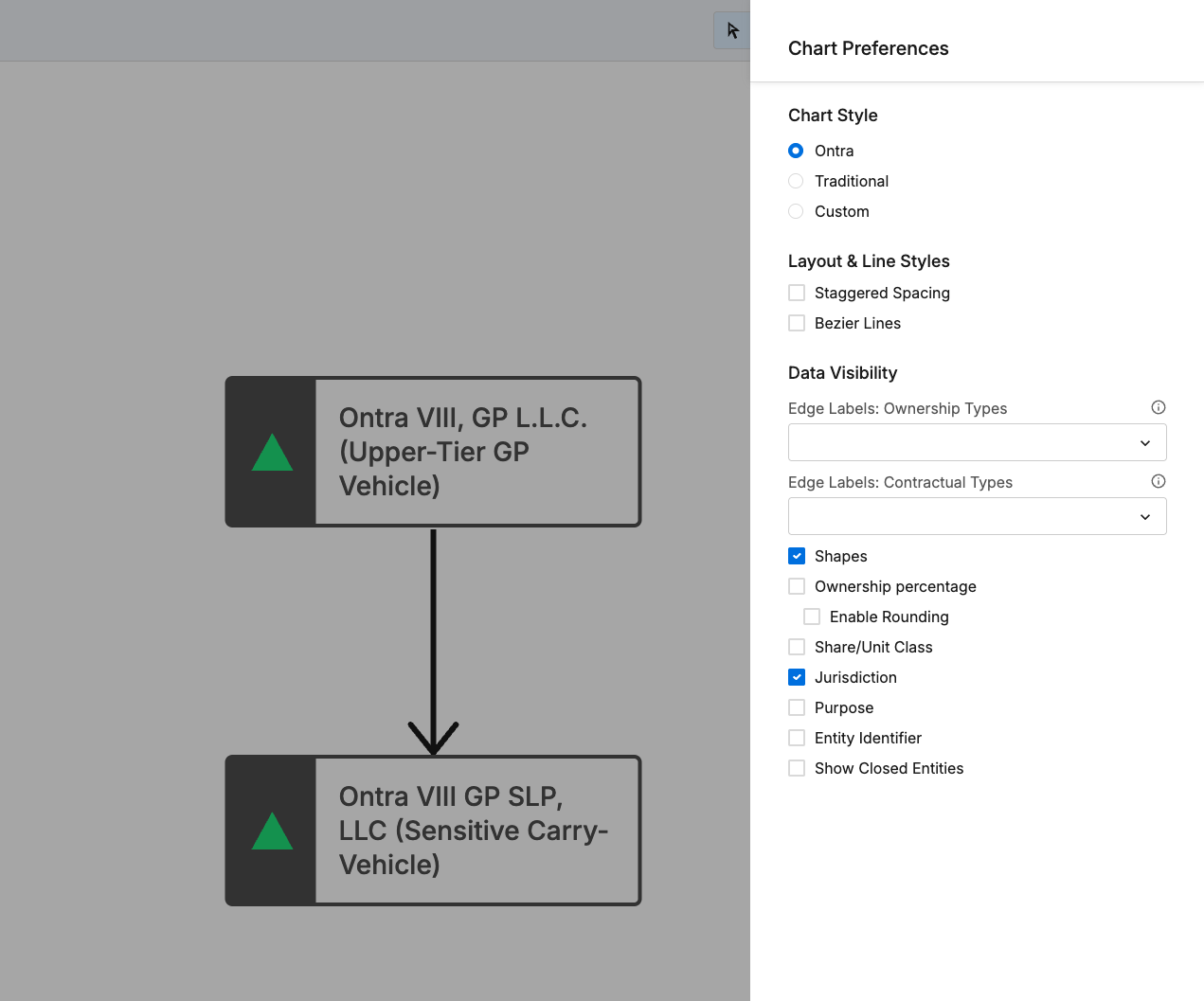

Click Chart Preferences to set your preferred viewing options.
Chart Style
The chart preferences menu allows you to choose between the Ontra Style, Traditional Style, and the Custom Style. The Traditional Style shows your organization's structure with triangles, rectangles, and other shapes. This style may be more familiar to tax teams and advisors. The Ontra Style option offers a more streamlined appearance for entities and can include shape icons to indicate the entity type. The Custom Style option is tied to your preferences set in your Chart Styles tab and allows for you to utilize stylized attributes you have created.
Layout & Line Styles
Layout and line style displayed may also be customized.
- Staggered Spacing - Creates space between entity shapes to clearly see each one displayed.
- Bezier Lines - Curvy lines instead of straight lines
Data Visibility
Data visible may also be customized. By selecting the checkboxes to include entity data, including Relationship Types, Shapes, Ownership percentage (and Enable Rounding), Share / Unit class, Jurisdiction, Purpose, EIN, Notes*, Show Closed Entities, and Show Comments, a custom chart can be created with a few clicks.
*Notes will appear as footnotes at the bottom of the chart.
*Comments will appear where placed in the chart and persist when saved and exported if selected to be shown.
Arrange entities

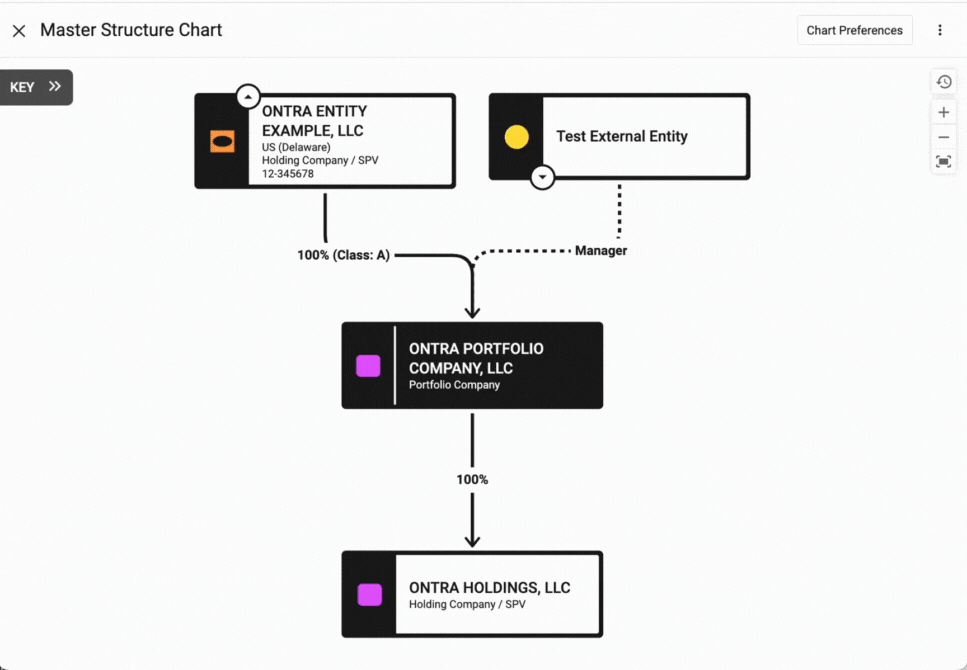

- Click and drag an entity to move it's place in the structure chart.
- Click on the three vertical dots to pin an entity to the current location in the chart, privatize (blur) the entity, or collapse the entity.
Draft Mode
Once you've located and clicked into an entity from the Entities dashboard, click View Structure Chart, click the ⋮ button, and select Enter Draft Mode.
Once in Draft Mode, your team can design and refine future-state entity structures to guide strategic transaction decisions.
Add new entities and relationships
Draft entity and relationship additions/changes to a chart manually or by using our AI Chart Generation feature. Learn more.
Add Chart Comments
Chart Comments give insight into an entire structure or parts of a structure and can be displayed/hidden in the Saved draft chart and during chart export.

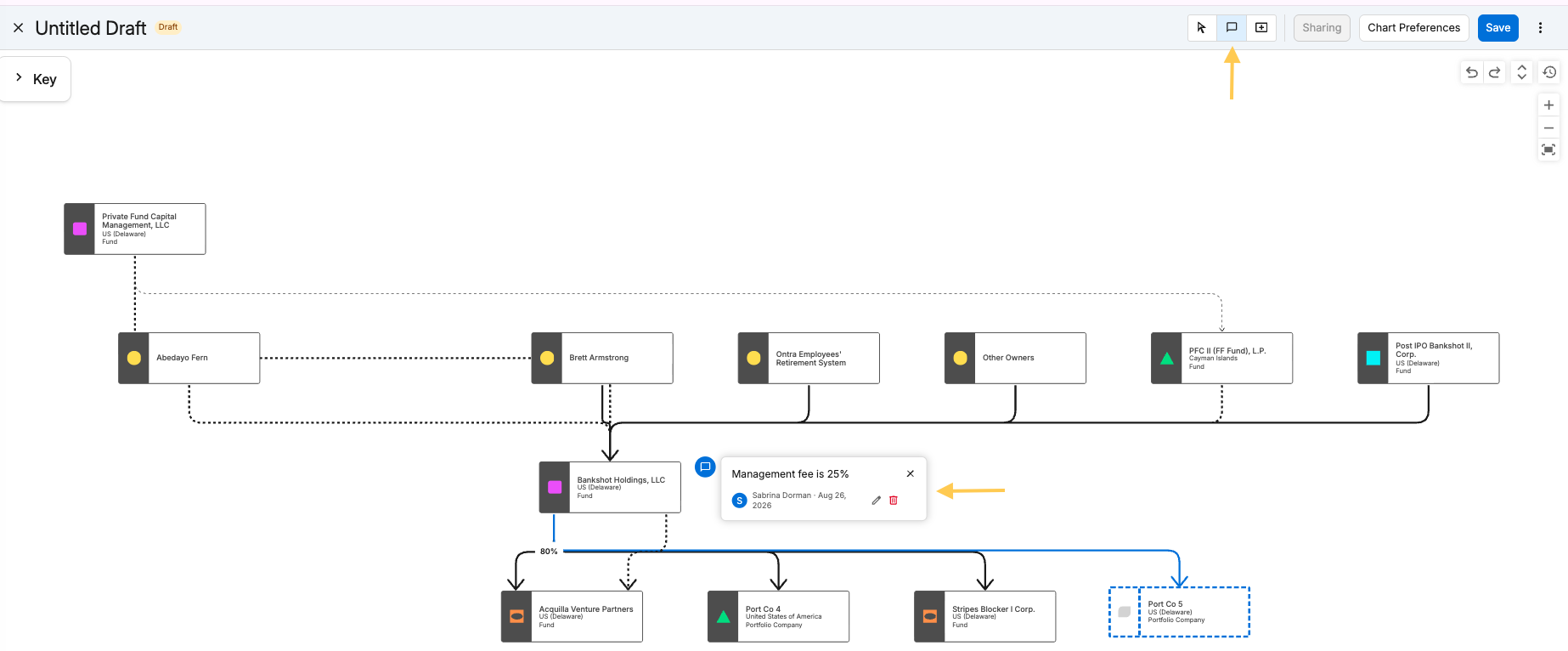

- Click the comment box in the top-right corner
- Drop the comment box anywhere on the chart (move around by dragging)
- Input your text
- Click Apply
